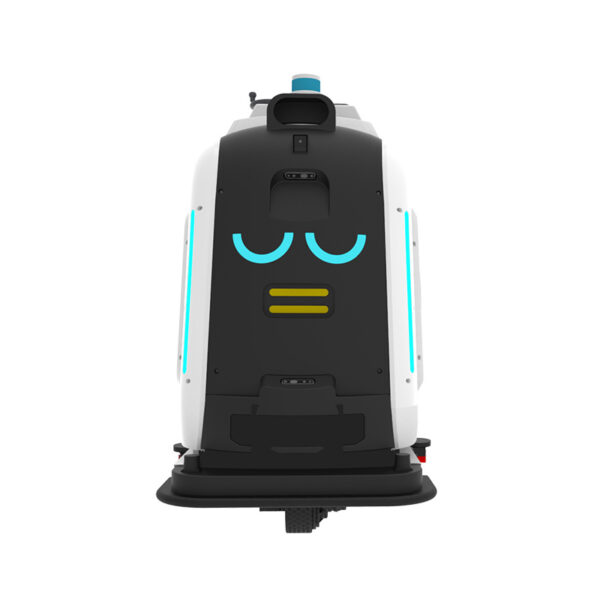

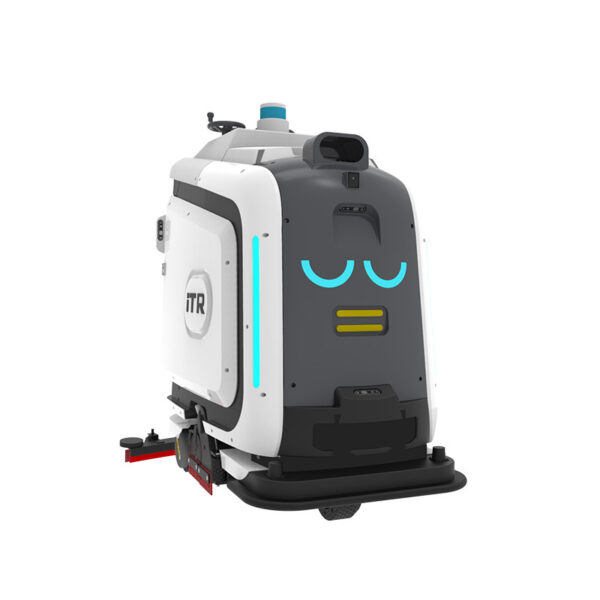

Commercial Floor Scrubber
AT-R02 is a large cleaning robot of AT-R series, designed for the hard floor cleaning needs of largeindoor and outdoor commercial scenes, equipped with multi functions such as scrubbing, dirt absorp.tion,sterilization,ash reduction and disinfection.
- Description
- Reviews (0)
Description
APPLICATION SCENES:
Airport station, parking lot, commercial complex, hotel, office building, hospital, industrial park, factory, large warehouse, exhibition center, school.
APPLICABLE FLOORING TYPES:
Marble, granite, terrazzo, concrete floor, epoxy resin, tile, wood floor and other hard ground.
CORE SUPERIORITY
| Multi-sensor fusion design,multi- dimensional environment perception, flexible response to dynamic and static obstacles,and strict guarantee of man-machine safety. | Automatically feedback task details，digital management real-time monitor robot’soperating status. |
| Standing driving design,automatic mode/manual mode flexible switchto meet diverse needs. | 310L large capacity water tank，3D laser detection diameter up to 400 meters. |
| No extra tool maintain system,easy maintain spare parts. | Integrated site cleaning brush and sweeping roll brush, sweep and wash together, clean more thoroughly without fear of big scenarios. |
| Automatically start task, charging, water adittion and drainage, 7x24h unattended operation, effectively free up labor hand. |
PRODUCT PARAMETERS
| Dimension（Length×Width×Height） | 1.42×1.05×1.5m（56×41×57in） |
| Cleaning width | 110cm（43in） |
| Max.Productivity | 3600m2/h（38750ft²/h） |
| Max.Speed | 1m/s |
| Max.Working Area | 17000m2（182986ft²/h） |
| Battery Capacity | 120Ah |
| Rated Voltage | 48V |
| Gradeability | 12° |
| Weight | 350kg（771lb） |
| Clean Water Tank | 150L（32gal） |
| Recovered Water Tank | 140L（30gal） |
| Brush pressure | 30-60kg（66-132lb） |
| Charging time | 5h |
| Uptime | 4-7h |
| Maximum mapping area | 40000m2（430556ft²） |
